Electromagnetic PTO Clutches

Ogura

Electromagnetic PTO Clutches

OGURA CLUTCH offers a range of Power Take-Off (PTO) electromagnetic clutches, providing a reliable and efficient solution for power transmission in various mechanical systems. These clutches are widely used in gasoline and diesel engines to drive auxiliary equipment such as compressors, pumps, and hydraulic systems.

How It Works?

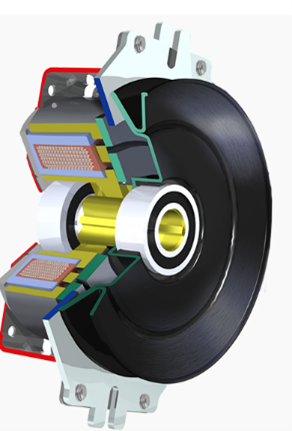

OGURA PTO clutches operate using an electromagnetic mechanism. When current flows through the coil, a magnetic field is generated, pulling the clutch plate toward the rotating disk, thereby transferring power from the engine to the connected component. When the current is cut off, a spring returns the plate to its original position, disengaging the drive.

Key Technical Specifications:

  • Torque Transmission: From 5Nm to 500Nm, depending on the model and application.
  • Spring Engagement Force: Ranges from 200N to 3000N, ensuring durability and performance.
  • Maximum Rotational Speed: Up to 3600 RPM in different models.
  • Operating Voltage: Available in 12V or 24V DC, based on system requirements.
  • High-Temperature Resistance: Operating range from -30°C to 80°C.



Main Advantages:

  • Fast and Precise Response – Immediate engagement and disengagement for optimal control.
  • Extended Service Life – Advanced design minimizes wear and maintains stable performance over time.
  • Minimal Maintenance – Designed for long-term operation with minimal servicing needs.
  • Operates Under Heavy Loads – Suitable for heavy-duty equipment and challenging work environments.



Common Applications:

  • Professional Lawn Mowers
  • Agricultural and Industrial Equipment
  • Hydraulic Pumps
  • Cooling and Air Conditioning Systems

For more details and technical specifications:
🔗 OGURA PTO Clutches
